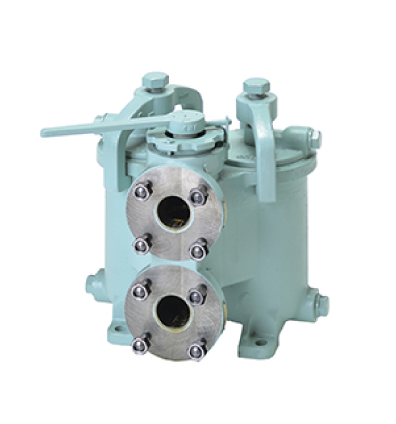

WStype SMALL DUPLEX OIL STRAINER
SPEC. (Equivalent of JIS F7202)
| Nominal dia. | 25A～40A |
|---|---|
| Fluid | Various oil |
| Working press. | 0.4MPa |
| Max.fluid temp. | 150℃ |
| Connection | JIS 5K |
| Body Material | FC200 etc. |
| FILTER Material | FILTER CYLINDER:SS400 /
WIRE GAUZE:SUS304 etc. |
Product Description
A product based on JIS F 7202 (formerly F 7224), which uses a cock plug direct switching method, specialized for 5K flange.
| NOMI. DIA. |
BODY | LEGS | |||||||
|---|---|---|---|---|---|---|---|---|---|
| d | (H) | H1 | H2 | L | L3 | L1 | L2 | h | |
| 25A | 25 | (252) | 133 | 53 | 196 | 167 | 100 | 128 | 12 |
| 32A | 40 | (348) | 203 | 78 | 280 | 241 | 152 | 176 | 15 |
| 40A | 40 | (348) | 203 | 78 | 280 | 241 | 152 | 176 | 15 |
