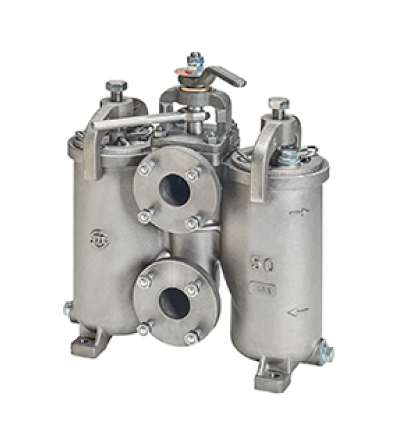

U-turn H-type DUPLEX OIL STRAINER

UH-htype　U-turn DUPLEX OIL STRAINER H-handle Type

SPEC. (Equivalent of JIS F7208)

Nominal dia. 50A～125A
Fluid Various oil
Working press. 0.4MPa
Max.fluid temp. 150℃
Connection JIS 5K、10K 　/　 ANSI 150Lb etc.
Body Material FC200 etc.
FILTER Material FILTER CYLINDER:SS400　/
WIRE GAUZE:SUS304　etc.

Download instruction manual

Product Description

A product based on JIS F 7208 which uses the HS type oil strainer main body as a base with the inlet and outlet flanges set in the same direction.
It can be used in corners and locations where piping space is limited where it is difficult to use the HS type oil strainers.
For 40A or less, the cock plug direct switching method.

◆Cock plug switching

  1. Rotate the upper handle (cock lift handle) counter clockwise and lift the cock.
  2. Rotate the lower handle (cock handle) 90 degrees.
  3. Rotate the upper handle (cock lift handle) clockwise and depress the cock.
DRAWING
NOMI.
DIA. 		BODY LEGS
d (H) H1 H2 L L1 L2 L3 h
50A 50 (490) 285 110 415 90 150 302 15
65A 65 (600) 358 158 514 110 185 375 19
80A 80 (690) 414 174 600 125 215 440 19
100A 100 (825) 497 207 718 145 255 524 23
125A 125 (975) 588 248 852 165 305 620 23

UHtype　U-turn SMALL DUPLEX OIL STRAINER

SPEC. (Equivalent of JIS F7208)

Nominal dia. 25A～40A
Fluid Various oil
Working press. 0.4MPa
Max.fluid temp. 150℃
Connection JIS 5K
Body Material FC200 etc.
FILTER Material FILTER CYLINDER:SS400　/　
WIRE GAUZE:SUS304　etc.

Download instruction manual

NOMI.
DIA.		 BODY LEGS
d (H) H1 H2 L L1 L2 L3 h
25A 25 (247) 132.5 52.5 268 57.5 100 200 12
32A 40 (347) 203 78 390 70 146 275 15
40A 40 (347) 203 78 390 70 146 275 15

UHtype　U-turn DUPLEX OIL STRAINER Cam Lever Handle Type

SPEC. (Equivalent of JIS F7208)

Nominal dia. 50A～125A
Fluid Various oil
Working press. 0.4MPa
Max.fluid temp. 150℃
Connection JIS 5K、10K　/　 ANSI 150Lb etc.
Body Material FC200 etc.
FILTER Material FILTER CYLINDER:SS400　/　
WIRE GAUZE:SUS304　etc.

Download instruction manual

Product Description

Uses the UH-h type oil strainer main body as-is, with a strainer which uses a cam lever handle in the cock plug switching section. Available in nominal diameters from 50A to 125A.

◆Cock plug switching

  1. Push the handle downwards.
  2. Rotate the handle 90 degrees while depressed.
  3. The switching is complete if you take off your hand.
NOMI.
DIA. 		BODY LEGS
d (H) H1 H2 L L1 L2 L3 h
50A 50 (430) 285 110 415 90 150 302 15
65A 65 (530) 358 158 514 110 185 375 19
80A 80 (600) 414 174 600 125 215 440 19
100A 100 (710) 497 207 718 145 255 524 23
125A 125 (820) 588 248 852 165 305 620 23
