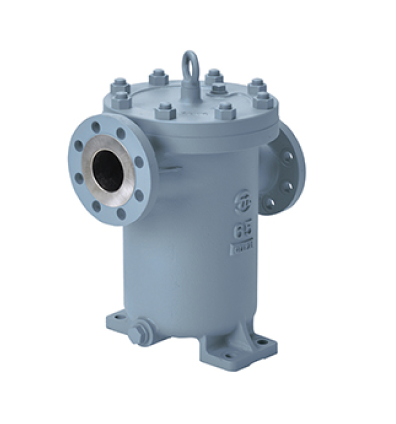

RStype Round Cover SIMPLEX OIL STRAINER
SPEC.
| Nominal dia. | 40A～350A |
|---|---|
| Fluid | Various oil (or water) |
| Connection | JIS 10K ANSI 150Lb etc. |
| Body Material | FCD400 etc. |
| FILTER Material | FILTER CYLINDER:SS400 / WIRE GAUZE:SUS304 etc. |
Product Description
Flange cover type with high pressure for SS type.
The available forms are a straight S shape from the inlet flange to the outlet, left-curved outlet LA type and right curved outlet LB type.
We also offer a high pressure flange cover type (RS type).
| TYPE | BODY | LEG | ||||||
|---|---|---|---|---|---|---|---|---|
| d | (H) | H1 | H2 | L | L1 | P | h | |
| RS 40 | 40 | (300) | 188 | 145 | 260 | － | － | － |
| RS 50 | 50 | (400) | 258 | 208 | 330 | 200 | 60 | 15 |
| RS 65 | 65 | (500) | 337 | 270 | 390 | 245 | 80 | 19 |
| RS 80 | 80 | (520) | 356 | 283 | 454 | 280 | 80 | 19 |
| RS 100 | 100 | (605) | 430 | 340 | 460 | 315 | 90 | 19 |
| RS 125 | 125 | (670) | 482 | 373 | 450 | 345 | 90 | 23 |
| RS 150 | 150 | (760) | 540 | 410 | 470 | 370 | 90 | 23 |
| RS 200 | 200 | (880) | 630 | 475 | 570 | 435 | 120 | 25 |
| RS 250 | 250 | (1030) | 729 | 529 | 700 | 520 | 150 | 27 |
| RS 300 | 300 | (1100) | 772 | 542 | 800 | 545 | 160 | 27 |
| RS 350 | 350 | (1230) | 855 | 590 | 860 | 595 | 160 | 27 |
