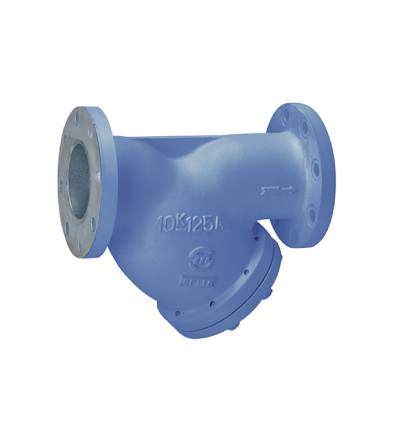

MYFtype Y TYPE STRAINER

SPEC.

Nominal dia.25A~250A
FluidVarious oil (or water)
Working press.1.0MPa
Max.fluid temp.150℃
ConnectionJIS 10K
Body MaterialFC200 etc.
FILTER MaterialSUS304 etc.

Product Description

Our most popular strainer, a Y type strainer (MYF type) that is small form and lightweight.
Standard element filtering precision is from approximately 16 to 60 mesh. Use for low mesh, low turbidity liquids.
We also offer a stainless steel MYU type (up to 150A)

NOMI.
DIA.
BODYELEMENT
dL(H)D1H1
25A25160(85)2960
32A32180(105)3670
40A40190(110)4475
50A50220(130)5490
65A65270(185)78120
80A80290(215)88150
100A100350(250)110180
125A125390(280)140200
150A150440(335)170240
200A200540(395)210300
250A250680(490)270370

MYStype Y TYPE STRAINER

SPEC.(Equivalent of JIS F7220)

Nominal dia.20A~50A
FluidVarious oil (or water)
Working press.5K:0.7MPa、10K:1.4MPa
Max.fluid temp.120℃
ConnectionJIS 5K、10K
Body MaterialFC200 etc.
FILTER MaterialSUS304 etc.

Product Description

A product based on JIS F 7220. Used for reducing valves and drain traps, etc.
Standard element filtering precision is from approximately 16 to 60 mesh. Use for low mesh, low turbidity liquids.

NOMI.
DIA.
BODYELEMENT
dL(H)AD1H1
20A20200(128)803080
25A25225(153)1004095
32A32260(164)11050105
40A40280(180)11060120
50A50320(208)15570150
