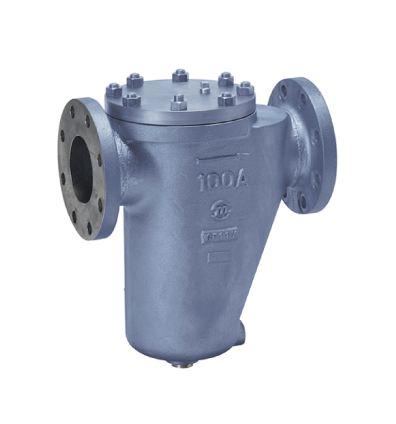

MUFtype U TYPE STRAINER
SPEC.
| Nominal dia. | 25A～150A |
|---|---|
| Fluid | Various oil (or water) |
| Working press. | 1.0MPa |
| Max.fluid temp. | 150℃ |
| Connection | JIS 10K / ANSI 150Lb etc. |
| Body Material | FC200 etc. |
| FILTER Material | SUS304 |
Product Description
The U type strainer has outlets and inlets at the same height which allows for easy piping as a line
strainer because it has no attachment legs and in addition the bucket type element allows for easy
removal and cleaning.
The element capacity is between the simplex and Y types, making this a strainer appropriate for a wide
range of uses.
Standard element filtering precision is from approximately 16 to 100 mesh.
We also offer a stainless steel MUU type (up to 100A)
| NOMI. DIA. |
BODY | ELEMENT | |||||
|---|---|---|---|---|---|---|---|
| d | L | H | (H1) | B&Db | D1 | H2 | |
| 25A | 25 | 180 | 125 | (44) | □80 | 38 | 85 |
| 32A | 40 | 230 | 150 | (56) | □106 | 54 | 96 |
| 40A | 40 | 230 | 150 | (56) | □106 | 54 | 96 |
| 50A | 50 | 260 | 175 | (62) | □117 | 66 | 122 |
| 65A | 80 | 300 | 245 | (84) | Φ185 | 100 | 170 |
| 80A | 80 | 300 | 245 | (84) | Φ185 | 100 | 170 |
| 100A | 100 | 360 | 315 | (100) | Φ222 | 124 | 220 |
| 125A | 125 | 430 | 335 | (207) | Φ288 | 169 | 230 |
| 150A | 150 | 500 | 410 | (223) | Φ327 | 204 | 290 |
