Round Cover H-type DUPLEX OIL STRAINER

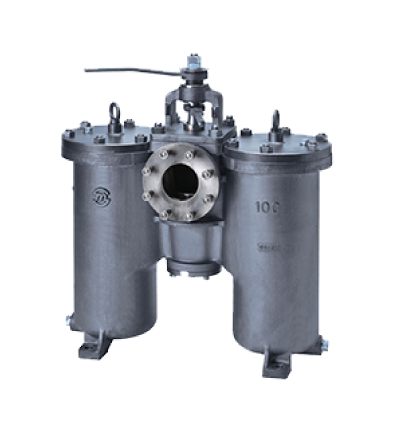

HRtype　Round Cover DUPLEX OIL STRAINER

SPEC.

Nominal dia. 32A～250A
Fluid Various oil
Max.work.press 1.8MPa
Connection JIS 10K 　/　 ANSI 150Lb etc.
Body Material FCD400 etc.
FILTER Material FILTER CYLINDER:SS400　/　
WIRE GAUZE:SUS304 etc.

Download instruction manual

Product Description

Round cover type based on HS type for high pressure.

DRAWING
NOMI.
DIA. 		BODY LEGS
d (H) H1 H2 L L1 L2 P L3 h
32A 40 (480) 271 215 419 180 146 – 296 15
40A 40 (480) 271 215 419 180 146 – 296 15
50A 50 (490) 285 219 450 180 150 – 302 15
65A 65 (600) 358 273 544 215 185 – 375 19
80A 80 (690) 414 312 625 245 215 – 440 19
100A 100 (825) 497 371 756 285 255 – 524 23
125A 125 (975) 588 431 874 330 305 – 620 23
150A 150 (1200) 712 511 1046 410 365 80 760 23
200A 200 (1440) 890 645 1250 490 430 100 920 27
250A 250 (1625) 1005 615 1538 600 540 140 1148 33

ERtype　Round Cover DUPLEX OIL STRAINER

SPEC.

Nominal dia. 50A～125A
Fluid Various oil
Max.work.press. 2.5MPa
Connection JIS 10K 　/　 ANSI 150Lb etc.
Body Material FCD400 etc.
FILTER Material FILTER CYLINDER:SS400　/
WIRE GAUZE:SUS304　etc.

Download instruction manual

Product Description

For high pressure type, the inlet and outlet flanges are set at the same height.

DRAWING
NOMI.
DIA. 		BODY LEGS
d (H) H1 L L1 L2 L3 h
50A 50 (490) 250 450 260 150 302 15
65A 65 (600) 320 544 310 185 375 19
80A 80 (690) 360 625 360 215 440 19
100A 100 (841) 440 756 440 255 524 23
125A 125 (1000) 530 874 500 325 630 23
