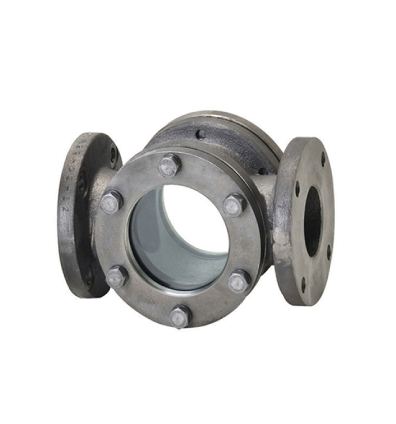

GPtype FLAT SIGHT GLASS
SPEC. (Equivalent of JIS F7234)
| Nominal dia. | 25A～150A |
|---|---|
| Fluid | Various oil (or water) |
| Connection | JIS 5K |
| Body Material | FC200 etc. |
| Glass Material | Tempered glass |
Product Description
A product based on JIS F 7234. Used to check the flow of the contained liquid through fluoroscopy.
| NOMI. DIA. | BODY | ||||
|---|---|---|---|---|---|
| d | L | (H) | D | d1 | |
| 25A | 25 | 150 | (95) | 42 | － |
| 32A | 40 | 180 | (120) | 62 | － |
| 40A | 40 | 180 | (120) | 62 | － |
| 50A | 50 | 190 | (140) | 70 | － |
| 65A | 65 | 240 | (165) | 105 | － |
| 80A | 80 | 260 | (180) | 120 | － |
| 100A | 100 | 300 | (210) | 145 | － |
| 125A | 125 | 300 | (240) | 145 | － |
| 150A | 150 | 310 | (275) | 155 | 128 |
