Product Details

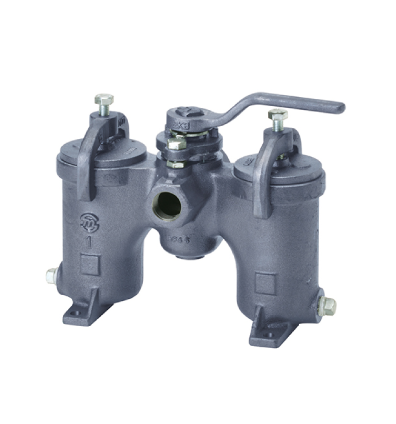

STWtype DUPLEX OIL STRAINER

SPEC.

Nominal dia.15A~40A
FluidVarious oil
Working press.0.4MPa
Max.fluid temp.80℃
ConnectionScrewed type
Body MaterialFC200

Product Description

The screwed type duplex strainer is design for 40A and under, and is compact with inlets and outlets at the same height allowing for easier piping, and also has a large surface area ratio element, allowing it to be used for highly viscous oil and other substances.

TYPEBODYLEG
Rc(in)HH1(H2)LL1L2h
STW 151/211592(120)1201259012
STW 251170145(120)15021512012
STW 321 1/4225195(150)17525012015
STW 401 1/2250220(150)21026513015

STUtype SIMPLEX OIL STRAINER

SPEC.

Nominal dia.15A~40A
FluidVarious oil
Working press.0.4MPa
Max.fluid temp.80℃
ConnectionScrewed type
Body MaterialFC200

Product Description

The screwed type simplex strainer is designed for 40A and under, and is compact with inlets and outlets at the same height allowing for easier piping, and also has a large surface area ratio element, allowing it to be used for highly viscous oil and other substances.

TYPEBODY
Rc(in)H(H1)LW
STU 151/285(85)120120
STU 251135(105)150140
STU 401 1/2200(150)210200

HVtype HEXAGONAL VALVE

SPEC.

Nominal dia.150A
FluidVarious oil
Working press.1.0MPa
Max.fluid temp.150℃
ConnectionJIS 10K /  ANSI 150Lb etc.
Body MaterialFCD400 etc.

Product Description

2 series, 3 way hexagonal valve cock with strainer which is used equipped tanks on both sides,or with a heat exchanger attached. The fail proof structural characteristics are aimed at use in lines where flow stoppages can lead to major accidents.
In addition, when used as a high precision filter, it can be attached to tanks of various designs regardless of the piping system.
We also offer a hexagonal valve U-turn type (VR type).

TYPEBODY
dEL1L2(H)L3
HV 150150167303273(605)370

VRtype U-turn HEXAGONAL VALVE

SPEC.

Nominal dia.100A~125A
FluidVarious oil
Working press.1.0MPa
Max.fluid temp.150℃
ConnectionJIS 10K /  ANSI 150Lb etc.
Body MaterialFCD400

Product Description

2 series, 3 way hexagonal valve cock with strainer which is used equipped tanks on both sides,or with a heat exchanger attached. The fail proof structural characteristics are aimed at use in lines where flow stoppages can lead to major accidents.
In addition, when used as a high precision filter, it can be attached to tanks of various designs regardless of the piping system.
We also offer a hexagonal valve U-turn type (VR type).

TYPEBODY
dE1L1L2(H)L3
VR 100100260240240(300)300
VR 125125263197197(380)350

VCtype VALVE CHANGE TYPE DUPLEX OIL STRAINER

SPEC.

Nominal dia.65A~80A
FluidVarious oil
Working press.4MPa
Max.fluid temp.150℃
ConnectionJIS 20K~40K
Body MaterialSC480 etc.

Product Description

A high pressure strainer which uses a duplex valve change type valve.
The material is cast steel, manufactured from 65A and 80A.

TYPEBODYLEG
d(H)H1H2L(L1)L2L3L4Ph
VC 6562(533)125230305(155)356.53522307023
VC 8075(618)170245355(170)371.53622607023
